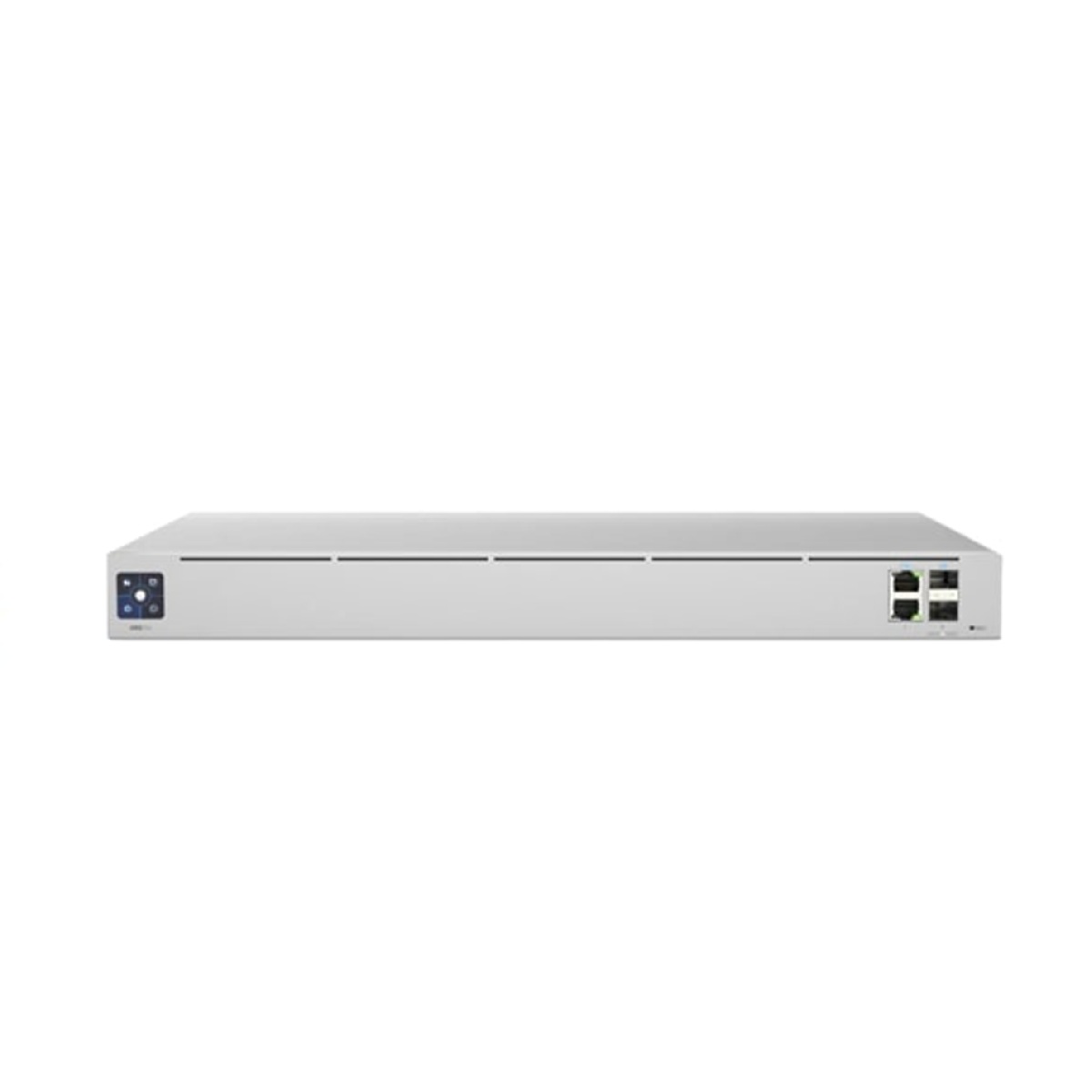

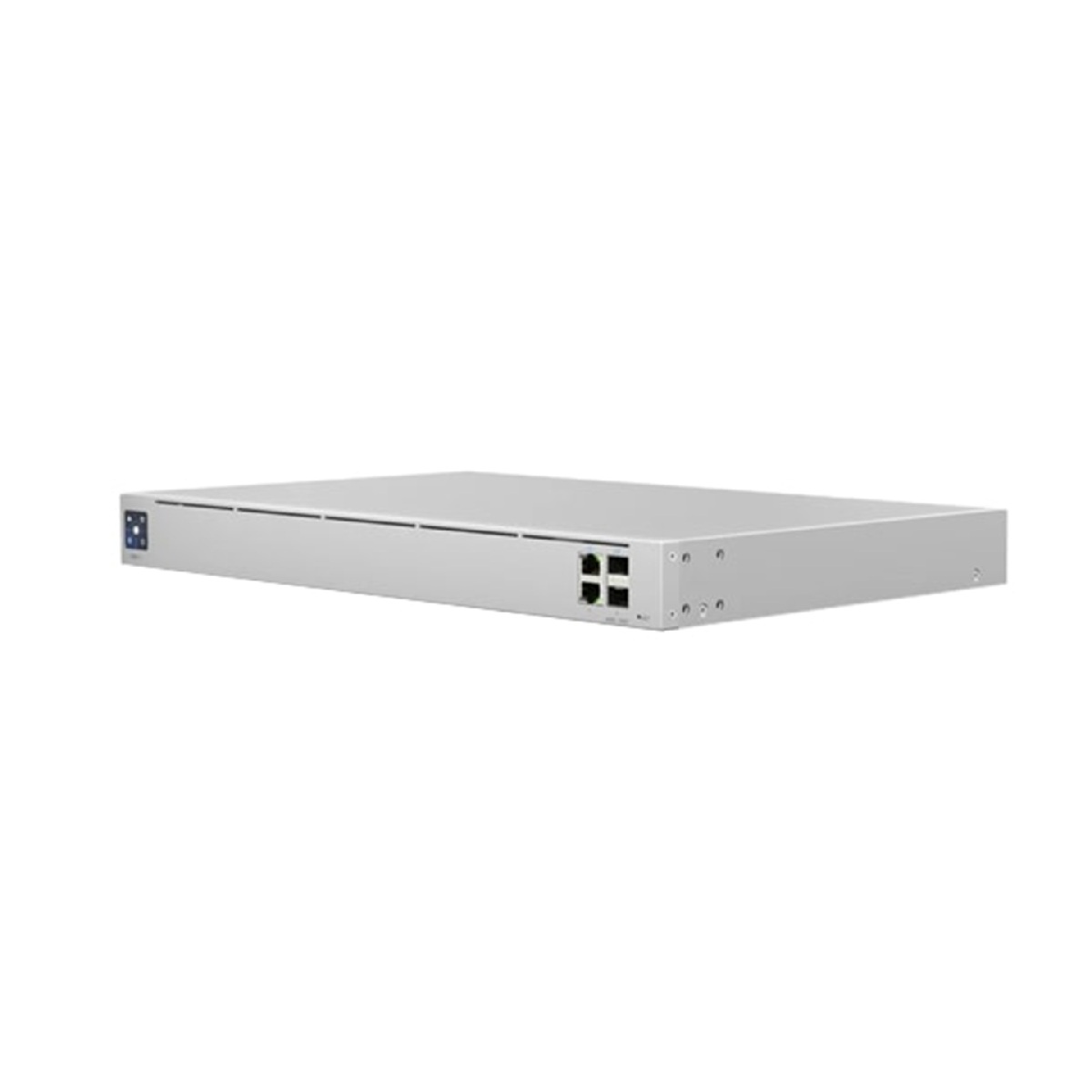

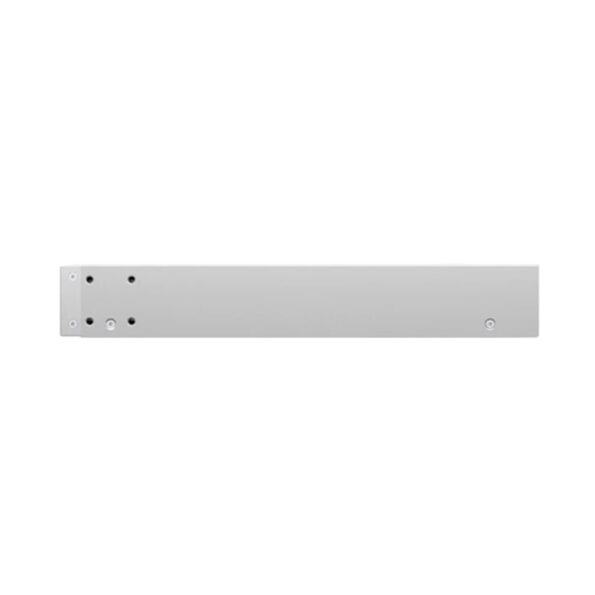

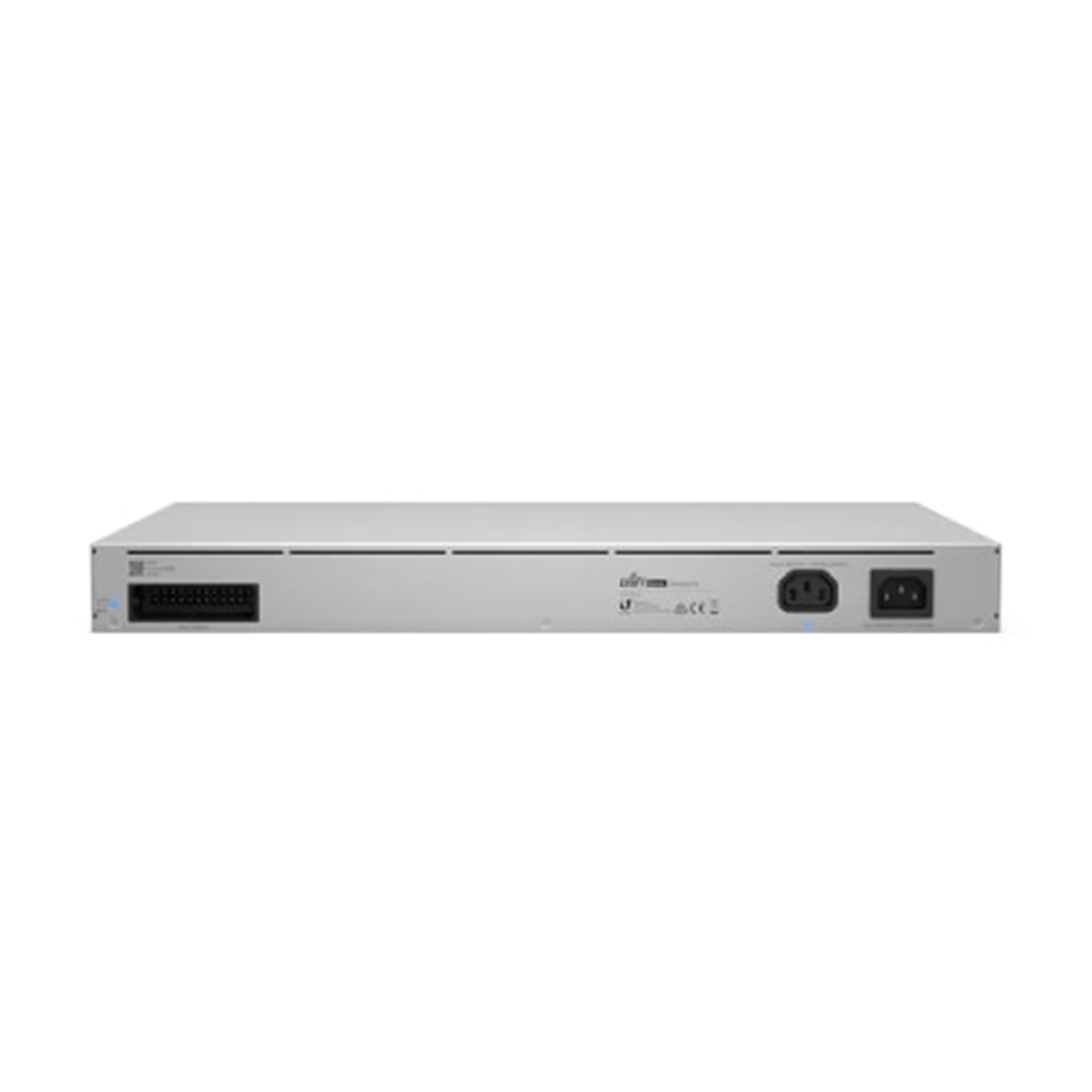

Ubiquiti UXG-Pro UniFi Enterprise Security Gateway
The Ubiquiti UXG-Pro UniFi Enterprise Security Gateway is a powerful security gateway that delivers a versatile networking interface and enterprise-class threat management functionality to medium to large-sized networks.
Attention: The item you are viewing is classified as a ‘special order’ commercial-only product. Please note, this item cannot be returned unless found to be faulty. We appreciate your understanding.
£512.99 inc.VAT / £427.49 exc.VAT
Ubiquiti UniFi UXG-Pro Enterprise Security Gateway Pro Broadband Router
Ubiquiti UXG-Pro UniFi Enterprise Security Gateway
The Ubiquiti UXG-Pro UniFi Enterprise Security Gateway is a powerful security gateway that delivers a versatile networking interface and enterprise-class threat management functionality to medium to large-sized networks. The UXG Pro is equipped with two (2) WAN ports (1GbE RJ45 and 10G SFP+) that provide failover support, as well as two (2) LAN ports (1GbE RJ45 and 10G SFP+) to provide the high-speed connectivity needed to support the most bandwidth-intensive applications.
Key Features
- 1.7 GHz quad-core processor.
- Two (2) WAN ports (1GbE RJ45 and 10G SFP+) with failover support.
- Two (2) LAN ports (1GbE RJ45 and 10G SFP+).
- Enterprise-class DPI, IPS/IDS, and layered firewall configuration.
- Power redundancy when connected to the UniFi SmartPower RPS (sold separately).
- SmartPower outlet (125VAC/2A) for an external modem (sold separately).
- Managed with the UniFi Network application: Version 5.14.11 and later.
- 1U-sized, rackmountable device.
Specifications
Mechanical
Dimensions
- 442.4 x 43.7 x 285.6 mm (17.42 x 1.72 x 11.24 in.)
Weight
- 3.42 kg (7.54 lb.)
Enclosure materials
- Front panel: Aluminium CNC
- Top cover/base: SGCC steel
Hardware
Processor
- Quad-core ARM Cortex-A57 at 1.7 GHz
Memory information
- 2 GB DDR4
Management interface
- Ethernet
Networking interface
- LAN:
- 1 x 1GbE RJ45 port
- 1 x 10G SFP+ port
- WAN:
- 1 x 1GbE RJ45 port
- 1 x 10G SFP+ port
Power method
- US:
- 1 x Universal AC input, 125VAC, 2.7A max., 60 Hz
- 1 x RPS DC input, 11.5VDC, 2.87A
- Worldwide:
- 1 x Universal AC input, 200-240VAC, 1.7A max., 50/60 Hz
- 1 x RPS DC input, 11.5VDC, 2.87A
Power supply
- AC/DC, internal, 50W
Max. power consumption
- 30W
ESD/EMP protection
- Air: ± 15 kV, contact: ± 8 kV
LCM display
- 1 x 1.3-inch touchscreen
Button
- Factory reset
Operating temperature
- -10°C to 40°C (14°F to 104°F)
Operating humidity
- 5% – 95% noncondensing
Certifications
- CE, FCC, IC
LEDs
AC outlet/RPS
- Blue
Ethernet
- Green/amber
SFP+
- White/green
Software
Management application
- UniFi Network: Version 5.14.11 and later
Standard Warranty: 1-Years
| Weight | 3.2 kg |
|---|---|
| Dimensions | 44.24 × 4.37 × 28.56 cm |
Related Products
Ubiquiti UXG-Fiber Gateway Fiber is a desktop 10G independent gateway with an integrated 4-port 2.5GbE switch.
84 in stock

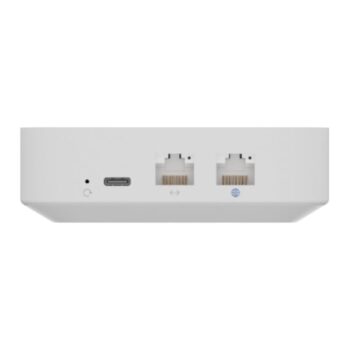

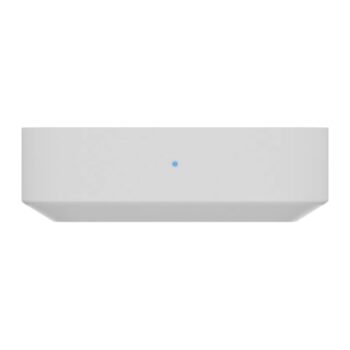

The Ubiquiti UniFi UXG-Lite Security Gateway Broadband Router is a compact and powerful UniFi gateway with a full suite of advanced routing and security features.
