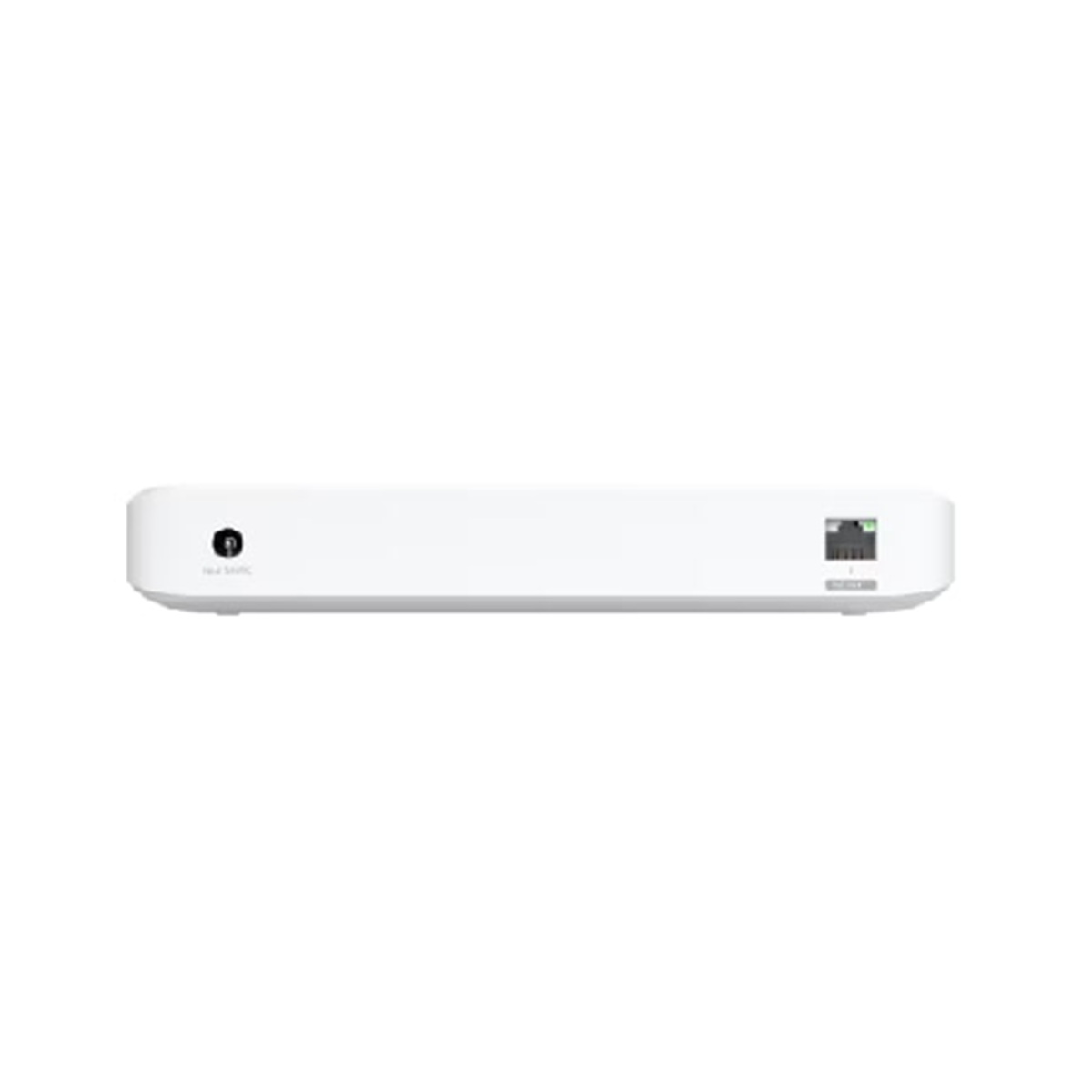

Ubiquiti USW-Ultra-60W UniFi 8-Port PoE+Access Switch
Ubiquiti USW-Ultra-60W UniFi 8-Port PoE+Access Switch is a compact, Layer 2 Gigabit switch with versatile mounting options. Alter the PoE availability of this switch with the AC adapter.
£148.76 inc.VAT / £123.97 exc.VAT
Out of stock
Email when stock available
Ubiquiti USW-Ultra-60W UniFi 8-Port Managed GbE PoE+ Access Switch w/ 60W Power Supply
Ubiquiti USW-Ultra-60W UniFi 8-Port PoE+Access Switch
The Ubiquiti USW-Ultra-60W UniFi 8-Port PoE+Access Switch is a compact, Layer 2 Gigabit switch with versatile mounting options. Alter the PoE availability of this switch with the AC adapter. The Ubiquiti USW-ULTRA-60W is a compact Layer 2 network switch, featuring 8 x Gigabit RJ45 ports and a total switching capacity of 16 Gbps. The USW-ULTRA-60W also delivers PoE+ across 7 x ports, able to provide up to 30W per port to a maximum of 52W, and offers a suite of Layer 2 switching features like port isolation, port mirroring and support for jumbo frames.
Ubiquiti’s USW-ULTRA-60W offers an intuitive and affordable way to easily expand network capacity and simplify power delivery for residential installations, work-from-home home networks and smaller offices. Both compact in size and affordable for budget-conscious smaller businesses and home offices, the USW-ULTRA-60W represents a frictionless and powerful way to expand network and PoE capacity.
The USW-ULTRA-60W represents an advancement over the standard USW-ULTRA by including a 60W AC PSU, raising the budget of readily available PoE to 52W PoE++. This increased budget broadens the range of potential devices that can be connected, simplifying network deployment and minimizing cable requirements.
In addition to the increased PoE++ budget the USW-ULTRA-60W is also capable of port isolation and port mirroring for effective network surveillance, and illuminating LEDs to indicate port status and connectivity. This switch is also fully compatible with the free UniFi app, offering remote provisioning, monitoring and management over the USW Ultra 60W and any other Ubiquiti devices on the network.
Key Features
- Seven (7) GbE PoE+ output ports.
- One (1) GbE PoE++ input port.
- PoE budget of up to 52W.
- Powered by PoE or 60W power adapter.
- Desktop or wall mounted.
- Compact design.
Specifications
Mechanical
Dimensions
- 203 x 76 x 33 mm (8 x 3 x 1.3 in.)
Weight
- Device: 320 g (11.3 oz.)
- Wall mount: 45 g (1.6 oz.)
- 60W adapter: 330 g (11.6 oz.)
Enclosure material
- Polycarbonate
Hardware
Management interface
- Ethernet In-Band
Networking interface
- (8) GbE RJ45 ports
PoE interface
- (7) PoE/PoE+ (Pins 1, 2+; 3, 6-)
Total non-blocking throughput
- 8 Gbps
Switching capacity
- 16 Gbps
Power method
- (1) 54V, 1.1A power adapter (Included)
- PoE++ (Pins 1, 2+; 3, 6- and 4, 5+; 7, 8-)
Power supply
- 54V, external, 1.1A/60W
Supported voltage range
- 44—57V DC
Max. power consumption
- 9W with PoE input (Excluding PoE output)
- 8W with AC adapter input (Excluding PoE output)
Total available PoE
- PoE++ input: 42W
- PoE+ input: 16W
- 60W PoE adapter input: 42W
- 60W AC adapter input: 52W
- 210W AC adapter input: 202W
- Note: At 45°C (113°F) operating temperature. Reduced to 161W (230V) or 121W (115V) at 60°C (140°F)
Max. PoE+ wattage per port by PSE
- 30W
Button
- Factory reset
Operating temperature
- PoE++ input: -30°C to 60°C (-22°F to 140°F)
- 60W AC adapter input: -20°C to 45°C (-4°F to 113°F)
- 210W AC adapter input: -20°C to 60°C (-4°F to 140°F)
Operating humidity
- 10 to 90% noncondensing
Certifications
- CE, FCC, IC
LEDs
System
- Status
Ethernet
- PoE
- Link/activity
Application Requirements
UniFi Network
- Version 8.0.7 and later
Standard Warranty: 1-Years
| Weight | 0.33 kg |
|---|---|
| Dimensions | 20.3 × 7.6 × 3.3 cm |
