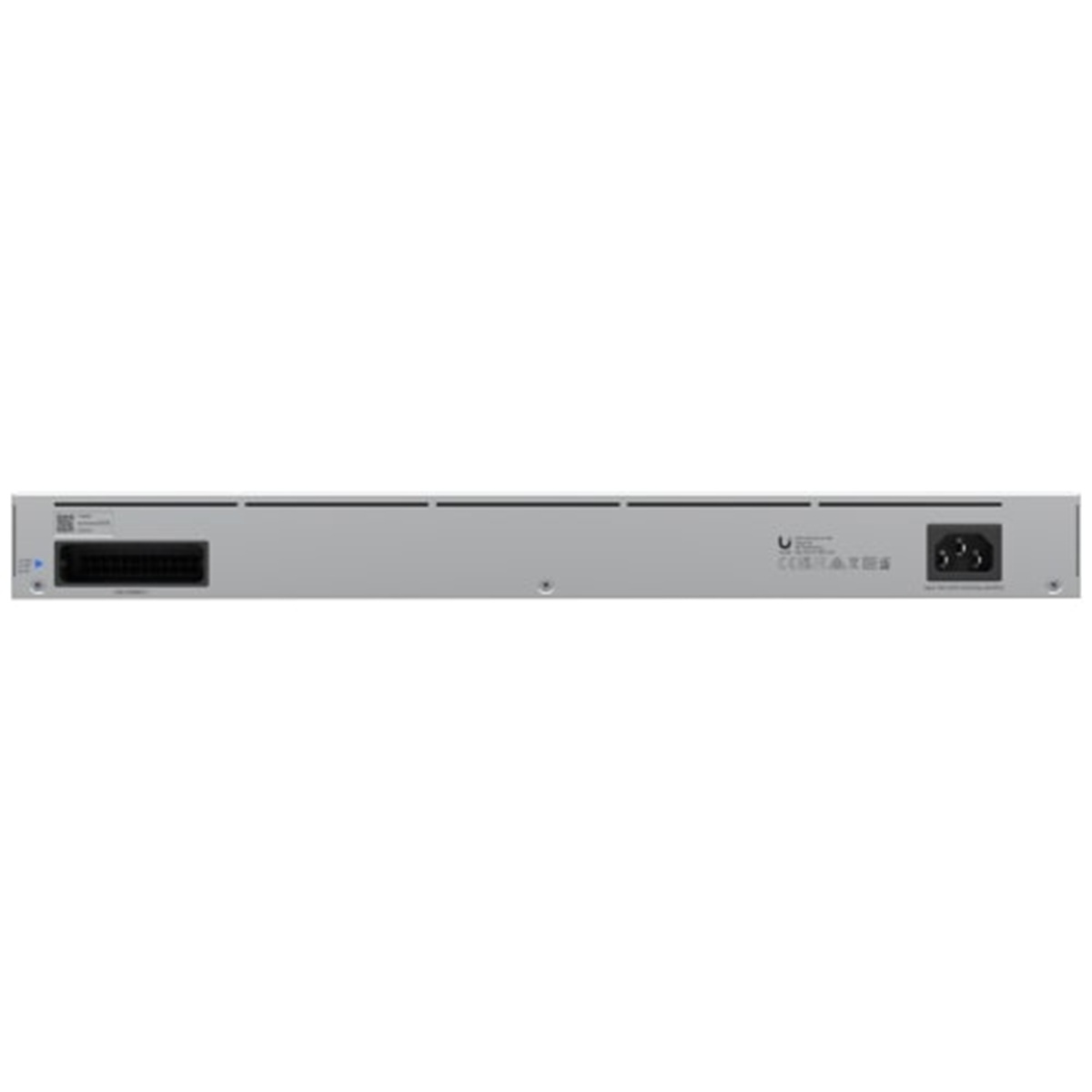

Ubiquiti USW-Pro-24-POE UniFi GbE PoE+/ PoE++24 Port Switch
Ubiquiti USW-Pro-24-POE UniFi GbE PoE+/ PoE++24 Port Switch is a configurable Gigabit Layer 2 and Layer 3 switch, with auto-sensing 802.3at PoE+ and 802.3bt PoE++. Sixteen (16) PoE+ and eight (8) PoE++ RJ45 Ethernet ports give a total of 400W PoE budget, and the two (2) SFP+ ports offer 10Gbps uplink options.
£769.15 inc.VAT / £640.96 exc.VAT
Ubiquiti USW-Pro-24-POE UniFi Gen2 24-Port L3 Managed GbE PoE+/PoE++ Access Switch w/ 2 x 10G SFP+ Ports
Ubiquiti USW-Pro-24-POE UniFi GbE PoE+/ PoE++24 Port Switch
The Ubiquiti USW-Pro-24-POE UniFi GbE PoE+/ PoE++24 Port Switch is a configurable Gigabit Layer 2 and Layer 3 switch, with auto-sensing 802.3at PoE+ and 802.3bt PoE++. Sixteen (16) PoE+ and eight (8) PoE++ RJ45 Ethernet ports give a total of 400W PoE budget, and the two (2) SFP+ ports offer 10Gbps uplink options.
Key Features
- Sixteen (16) PoE+ RJ45 Ethernet ports.
- Eight (8) PoE++ RJ45 Ethernet ports.
- Two (2) 10GbE SFP+ uplink ports.
- 1U rack-mountable (hardware included).
- Manage your networks from a single control plane.
- Intuitive and robust configuration, control and monitoring.
- Remote firmware upgrade.
- Users and guests.
- Guest portal/hotspot support.
- Near-silent cooling.
- 1.3″ touch LCM (Liquid Crystal Module).
Specifications
Hardware Specifications
Dimensions
- 442.4 x 285.4 x 43.7 mm (17.42 x 11.24 x 1.72 in.)
Weight
- Without mounting brackets: 4.30 kg (9.48 lb.)
- With mounting brackets: 4.39 kg (9.68 lb.)
Interfaces
- Networking
- 24 x 10/100/1000 RJ45 Ports
- 2 x 1/10G SFP+ Ethernet Ports
- Management
- Ethernet In-Band
Total Non-Blocking Throughput
- 44 Gbps
Switching Capacity
- 88 Gbps
Forwarding Rate
- 65.472 Mpps
Power Method
- 1 x Universal Input
- 100-240VAC, 50/60 Hz
- 1 x USP RPS DC Input
- 52VDC, 7.69A; 11.5VDC, 2.61A
Power Supply
- AC/DC, Internal, 450W
Voltage Range
- 100 to 240VAC
Max Power Consumption (Excluding PoE Output)
- 50W
LEDs
- System
- Status
- RJ45 Data Ports
- PoE; Speed/Link/Activity
- SFP+ Data Ports
- Link/Activity
ESD/EMP
- Protection Air: ± 16 kV, Contact: ± 12 kV
Shock and Vibration
- ETSI300-019-1.4 Standard
Operating Temperature
- -5ºC to 40ºC (23ºF to 104ºF)
Operating Humidity
- 10 – 90% Noncondensing
Certifications
- CE, FCC, IC
PoE
Total Available PoE
- 400W
PoE Interfaces
- Ports 1-16
- POE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)
- Ports 17-24
- 60W PoE++ IEEE 802.3bt (Pair A 1, 2+; 3, 6-) (Pair B 4 , 5+; 7, 8-)
Max. PoE Wattage per Port by PSE
- 802.3at
- 32W
- 802.3bt
- 64W
Voltage Range
- 802.3af
- 44-57V
- 802.3at/bt
- 50-57V
Package Contents
- 1 x USW-Pro-24-POE
- 2 x Rack-Mount Brackets
- 8 x Bracket Screws
- 4 x Mounting Screws
- 4 x Cage Nuts
- 1 x UK Power Cord
- 4 x Rubber Feet
Standard Warranty: 1-Years
| Weight | 4.39 kg |
|---|---|
| Dimensions | 44.24 × 28.54 × 4.37 cm |
