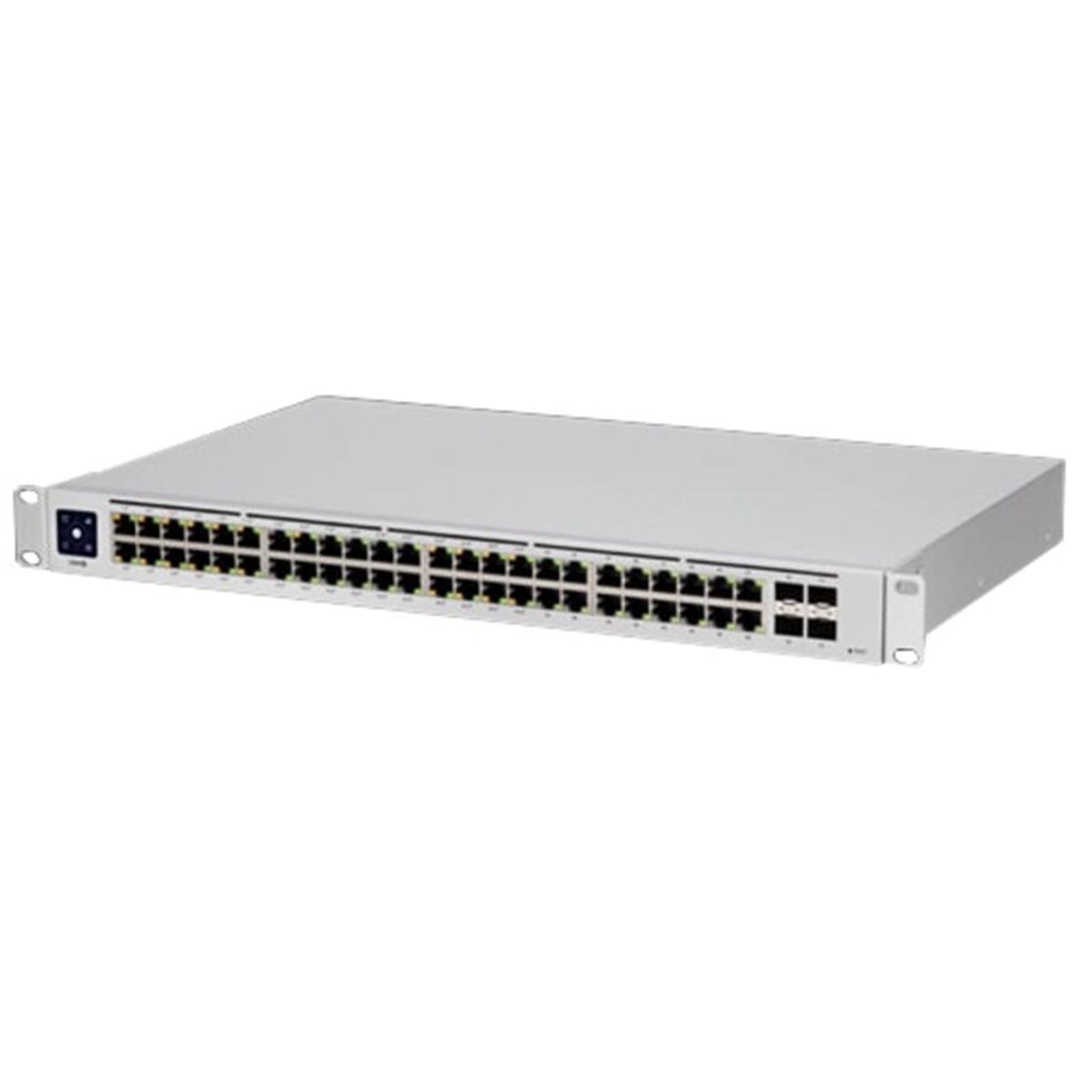

Ubiquiti USW-48-PoE UniFi PoE+ 48 Port Gigabit Switch
Ubiquiti USW-48-PoE UniFi PoE+ 48 Port Gigabit Switch provides Gigabit PoE links to your RJ45 Ethernet devices and Gigabit fibre uplink options to your enterprise network. The USW-48-PoE features a 1.3-inch touch LCM to provide status.
Attention: The item you are viewing is classified as a ‘special order’ commercial-only product. Please note, this item cannot be returned unless found to be faulty. We appreciate your understanding.
£586.62 inc.VAT / £488.85 exc.VAT
Ubiquiti USW-48-PoE UniFi 48-Port Managed GbE PoE+ Access Switch w/ 4 x 1G SFP Ports
Ubiquiti USW-48-PoE UniFi PoE+ 48 Port Gigabit Switch
The Ubiquiti USW-48-PoE UniFi PoE+ 48 Port Gigabit Switch provides Gigabit PoE links to your RJ45 Ethernet devices and Gigabit fibre uplink options to your enterprise network. The USW-48-PoE features a 1.3-inch touch LCM to provide status.
Grow your business’s network capacity to support computers, printers, storage, and power over Ethernet devices with the UniFi 48-Port Gigabit PoE+ Compliant Managed Switch from Ubiquiti Networks. Featuring a desktop or rack-mountable design, this Layer 2 managed switch includes 48 Gigabit Ethernet ports, 32 of which are PoE+ complaint and support up to 32W per port to operate compatible devices such as security cameras and IP phones. Four Gigabit SFP ports are also available for fiber uplink connections. Network traffic with connected devices can be further optimized using the UniFi Network Controller, which offers a comprehensive suite of features to configure, control, and monitor performance. Additionally, its fanless design helps the switch to operate silently in the background of your home office or business.
Key Features
- Forty-eight (48) Gigabit Ethernet ports including thirty-two (32) 802.3at PoE+ ports.
- Four (4) 1GbE SFP ports.
- 1.3-inch touch LCM.
- 1U Rackmountable (hardware included).
- Managed by UniFi Controller.
- 210W Power supply.
Specifications
Hardware Specifications
Dimensions
- 442.4 x 285 x 43.7 mm (17.42 x 11.22 x 1.72 in.)
Weight
- 4.52 kg (9.97 lb.)
- With Brackets: 4.61 kg (10.16 lb.)
Interfaces
- Networking
- 48 x 10/100/1000 RJ45 Ports
- 4 x 1G SFP Ethernet Ports
- Management
- Ethernet In-Band
Total Non-Blocking Throughput
- 52 Gbps
Switching Capacity
- 104 Gbps
Forwarding Rate
- 77.38 Mpps
Power Method
- 100-240VAC, 50/60 Hz, Universal Input
Power Supply
- AC/DC, Internal, 240W
Voltage Range
- 100 to 240VAC
Max Power Consumption (Excluding PoE Output)
- 45W
LEDs
- RJ45 Data Ports
- PoE; Speed/Link/Activity
- SFP Data Ports
- Link/Activity
ESD/EMP Protection
- Air: ± 16 kV, Contact: ± 12 kV
Shock and Vibration
- ETSI300-019-1.4 Standard
Operating Temperature
- -5ºC to 40ºC (23ºF to 104ºF)
Operating Humidity
- 10% – 90% Noncondensing
Certifications
- CE, FCC, IC
PoE
Total Available PoE
- 195W
PoE Interfaces – Ports 1-32
- PoE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)
Max. PoE Wattage per Port by PSE – 802.3at
- 32W
Voltage Range
- 802.3af Mode
- 44-57V
- 802.3at Mode
- 50-57V
Package
Package Contents
- 1 x Ubiquiti USW-48-PoE
- 2 x Rackmount Brackets
- 8 x Bracket Screws
- 4 x Mounting Screws
- 4 x Cage Nuts
- 1 x Power Cord
Standard Warranty: 1-Years
| Weight | 4.61 kg |
|---|---|
| Dimensions | 44.24 × 28.5 × 4.37 cm |
