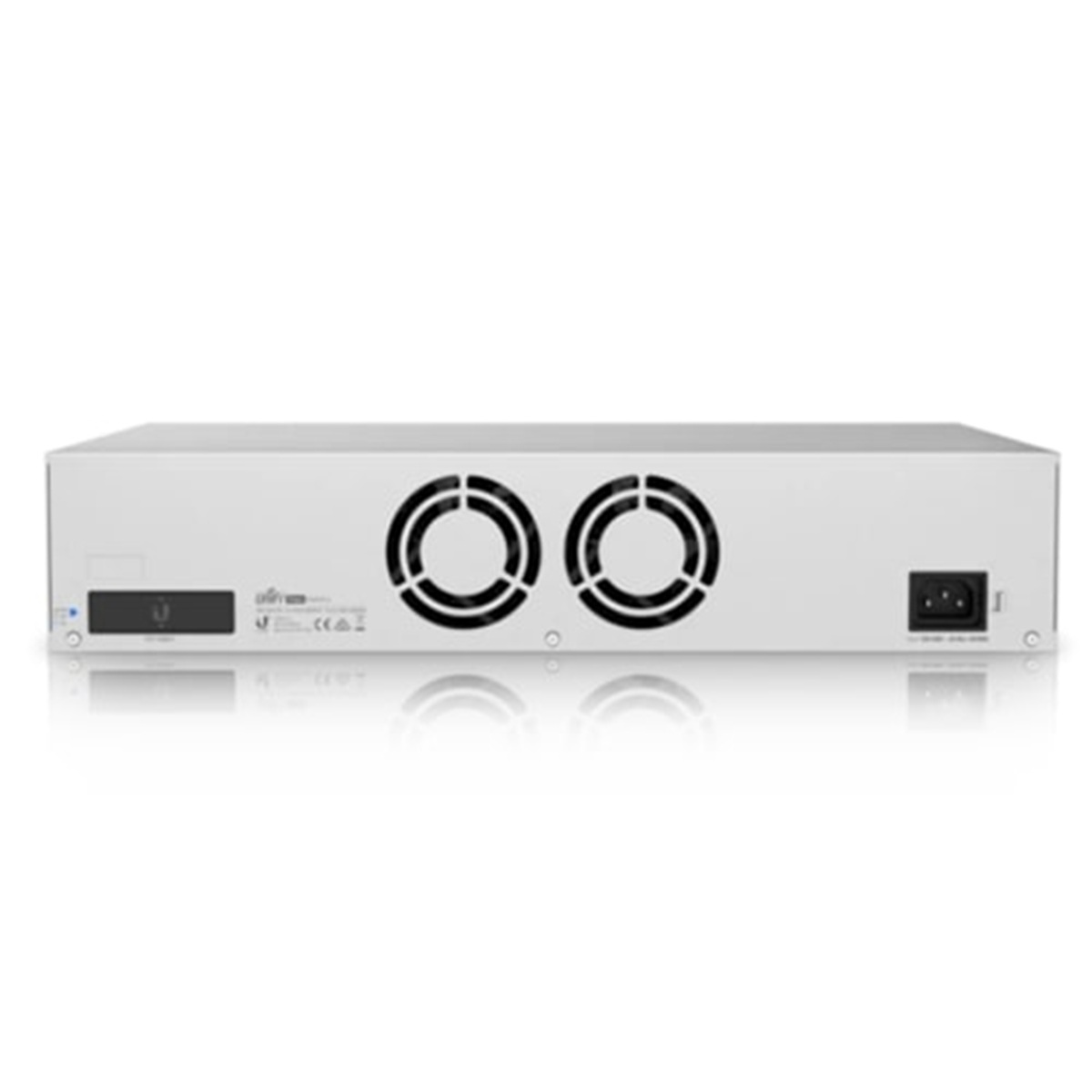

Ubiquiti UNVR-Pro UniFi Protect 7-Bay Network Video Recorder
Ubiquiti UNVR-Pro UniFi Protect 7-Bay NVR Network Video Recorder is a UniFi OS Console that runs the pre-installed UniFi Protect application and has a scalable hard disk drive (HDD) bay that can house up to seven (7) compatible 2.5″ or 3.5″ HDDs.
£56,782.94 inc.VAT / £47,319.12 exc.VAT
Out of stock
Email when stock available
Ubiquiti UNVR-Pro UniFi Protect 7-Bay NVR Network Video Recorder Enclosure
Ubiquiti UNVR-Pro UniFi Protect 7-Bay NVR Network Video Recorder
The Ubiquiti UNVR-Pro UniFi Protect 7-Bay NVR Network Video Recorder is a UniFi OS Console that runs the pre-installed UniFi Protect application and has a scalable hard disk drive (HDD) bay that can house up to seven (7) compatible 2.5″ or 3.5″ HDDs (sold separately). The UNVR-Pro also offers sophisticated data protection and promotes simple surveillance system scaling through its seamless integration with the Protect application, UniFi’s plug-and-play camera security platform. UniFi Protect gives you centralised, local, low-latency access to all of your live camera feeds and recordings from your desktop or mobile device. The UNVR-Pro also automatically applies a RAID 1 or 5 configuration based on the number of HDDs you install to further bolster your data protection and continuity. It’s also equipped with a 1.3-inch touchscreen display for concise, convenient video event previewing.
Key Features
- Seven (7) 2.5″/3.5″ drive bays.
- One (1) 10G SFP+ port and one (1) Gigabit RJ45 port.
- 2U rackmountable (kit included).
- 1.3-inch Touchscreen with Video Event Preview.
- UniFi Protect integrated with NVR.
- Bluetooth for easy setup with UniFi Protect app.
- Automated Secure RAID 1 or RAID 5 HDD configuration.
- USP-RPS support (sold separately) for redundant power backup.
Specifications
Mechanical
Dimensions
- 442 x 325 x 87 mm (17.4 x 12.8 x 3.4 in.)
Weight
- Without Rackmount Brackets: 9.2 kg (20.28 lb.)
- With Rackmount Brackets: 9.45 kg (20.83 lb.)
Enclosure Material
- SGCC Steel
Mount Materials
- SGCC Steel
Hardware
Processor
- Quad-Core ARM Cortex-A57 at 1.7 GHz
System Memory
- 4 GB
On-Board Flash Storage
- 32GB
Max. Power Consumption
- 160W
Max. Power Budget for Drives
- 135W
Power Method
- 1 x Universal AC input, 100-240VAC, 3A Max, 50/60 Hz
- 1 x USP-RPS DC input, 11.5VDC, 13.91A
Power Supply
- AC/DC, Internal, 200W
Networking Interfaces
- 1 x 10/100/1000 Mbps RJ45 Ethernet
- 1 x 1/10 Gbps SFP+ Ethernet
RF Interface
- 1 x Bluetooth v4.1
LCM Display
- 1.3-inch Touchscreen
- Bootup Animation: Bootup in Progress
- Firmware Upgrade Icon: Firmware Upgrading
- Steady White: Factory Defaults, Awaiting Adoption
- Steady Blue: Device is Adopted
Management Interface
- Ethernet In-Band Management
ESD/EMP Protection
- Air: ± 12kV, Contact: ± 8kV
Operating Temperature
- -5ºC to 40ºC (23ºF to 104ºF)
Operating Humidity
- 5% – 95% Noncondensing
Certifications
- FCC, CE, IC
LEDs
Ethernet
- Green: 1000 Mbps
- Amber: 10/100 Mbps
SFP+
- White: 10 Gbps
- Green: 1 Gbps
HDD
- Amber: Disk Error
- White: Disk Detected
RPS
- Blue: Ready
Standard Warranty: 1-Years
| Weight | 9.45 kg |
|---|---|
| Dimensions | 44.2 × 32.5 × 8.7 cm |
