Ubiquiti UniFi UXG-Max Gateway Broadband Router
The Ubiquiti UniFi UXG-Max Gateway Broadband Router is a compact, multi-WAN UniFi gateway with full 2.5 GbE support. This gateway is designed for high-performance networking at small-to-medium sites.
£181.30 inc.VAT / £151.08 exc.VAT
Ubiquiti UniFi UXG-Max Gateway Max Broadband Router
Ubiquiti UniFi UXG-Max Gateway Broadband Router
The Ubiquiti UniFi UXG-Max Gateway Broadband Router is a compact, multi-WAN UniFi gateway with full 2.5 GbE support. This gateway is designed for high-performance networking at small-to-medium sites.
Key Features
- Managed with a Cloud Key (sold separately) or UniFi Network Server.
- Up to 1.5 Gbps routing with IDS/IPS.
- One (1) 2.5 GbE WAN port.
- Four (4) 2.5 GbE LAN ports, including one (1) that is remappable to WAN.
- Powered via USB-C port (adapter included).
- Managed with UniFi Network 8.1.113 and later.
Specifications
Mechanical
Dimensions
- 141.8 x 127.6 x 30 mm (5.6 x 5 x 1.2 in.)
Weight
- 520 g (1.1 lb.)
Enclosure material
- Polycarbonate
Resistance
- IK04
Hardware
Processor
- Quad-core ARM Cortex-A53 at 1.5 GHz
Memory information
- 2 GB DDR4
Management interface
- Ethernet
- Bluetooth
Networking interface

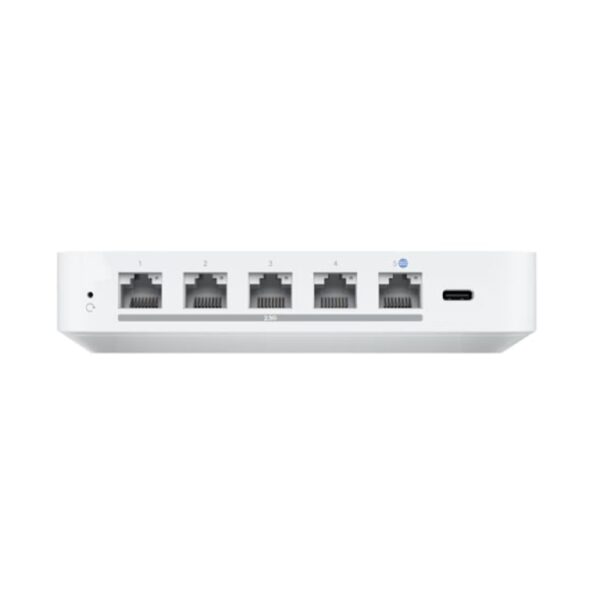

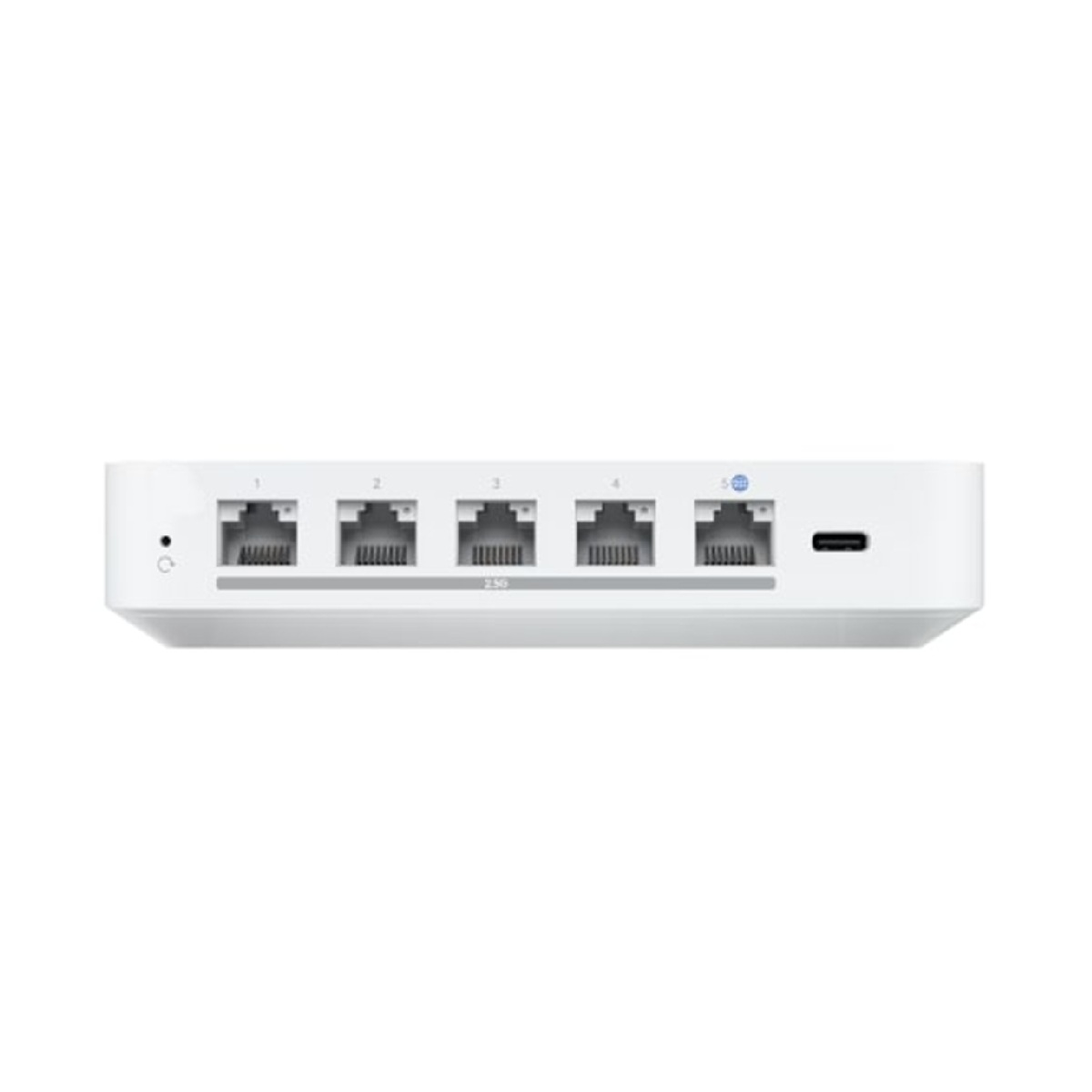

- LAN: 4 x 2.5 GbE RJ45 ports
- WAN: 1 x 2.5 GbE RJ45 port
Power method
- USB type C (5V/3A)
Supported voltage range
- 100–240V
Max. power consumption
- 9.6W
LED
- Ethernet
- White: link/activity
Button
- 1 x Factory reset
Ambient operating temperature
- -10°C to 40°C (14°F to 104°F)
Ambient operating humidity
- 5% to 95% noncondensing
Certifications
- CE, FCC, IC
Gateway Features
Performance
- WiFi QoS with UniFi APs
- Application, domain, and country-based QoS
- Application and device type identification
- Internet quality and outage reporting
Next-generation security
- Application-aware firewall rules
- Signature-based IPS/IDS threat detection
- Content, country, domain, and ad filtering
- VLAN/subnet-based traffic segmentation
- Full stateful firewall
Advanced networking
- Licence-free SD-WAN (when paired with a Cloud Key)
- WireGuard, L2TP and OpenVPN server
- OpenVPN client
- OpenVPN and IPsec site-to-site VPN
- One-click Teleport and Identity Enterprise VPN (when paired with a Cloud Key)
- Policy-based WAN and VPN routing
- DHCP relay
- Customisable DHCP server
- IPv6 ISP support
Application Requirements
UniFi Network
- Version 8.1.113 and later
Package
Package Contents

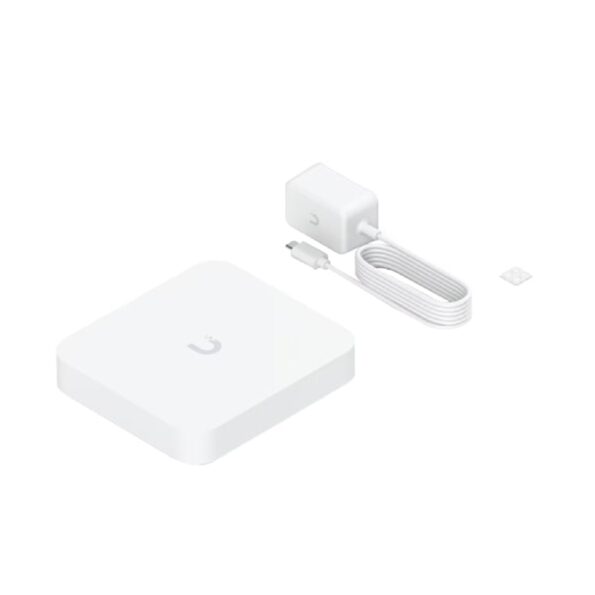

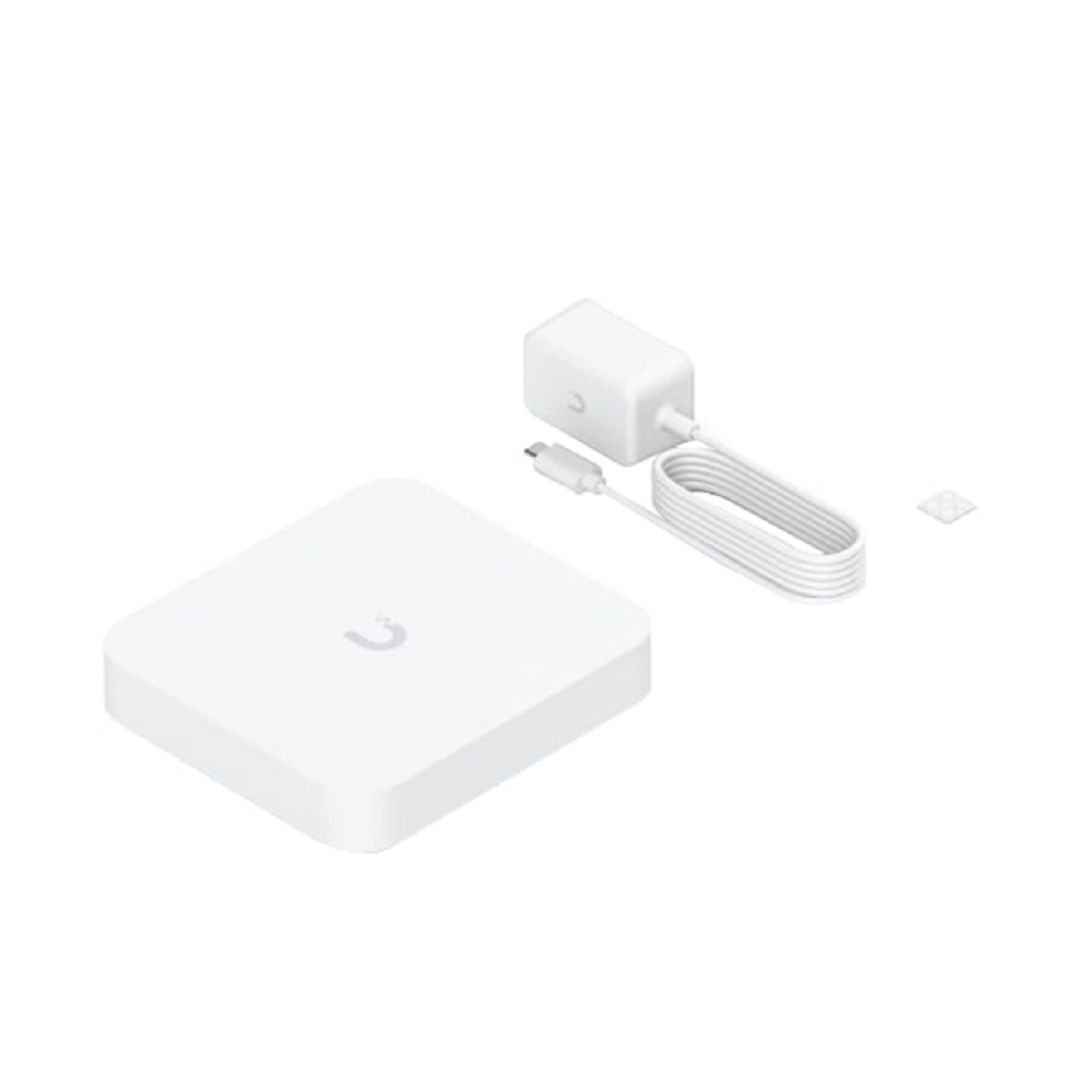

- 1 x Ubiquiti UXG-Max Gateway
- 1 x USB-C Power Adapter (5V DC, 3A)
Standard Warranty: 1-Years
| Weight | 0.52 kg |
|---|---|
| Dimensions | 14.18 × 12.76 × 3 cm |
