Ubiquiti UniFi UCG-Ultra Security Gateway Broadband Router
Ubiquiti UniFi UCG-Ultra Security Gateway Broadband Router is a powerful and compact multi-WAN UniFi Cloud Gateway Ultra with a full suite of advanced routing and security features.
£115.87 inc.VAT / £96.56 exc.VAT
Ubiquiti UniFi UCG-Ultra Security Cloud Gateway Ultra Broadband Router
Ubiquiti UniFi UCG-Ultra Security Gateway Broadband Router
The Ubiquiti UniFi UCG-Ultra Security Gateway Broadband Router is a powerful and compact multi-WAN UniFi Cloud Gateway Ultra with a full suite of advanced routing and security features. Ubiquiti UniFi Cloud Gateway Ultra (UCG-ULTRA) is a compact multi-WAN quad-core UniFi Cloud Gateway, featuring an impressive suite of advanced routing and security options. Included are 4 Gigabit Ethernet RJ45 ports, one of which can be remapped to WAN, and a 0.96″ LCM display monitor the status of the UCG-ULTRA at a glance. This gateway would be ideally suited to small-to-medium sized businesses for secure access to cloud-based storage, applications and services without costly infrastructure and IT resources, as well as being a great solution for remote workers who need to securely access corporate resources.
Key Features
- Runs UniFi Network for full-stack network management.
- Manages 30+ UniFi Network devices and 300+ clients.
- 1 Gbps routing with IDS/IPS.
- Multi-WAN load balancing.
- 0.96-in LCM status display.
- USB-C powered (adapter included).
Specifications
Mechanical
Dimensions
- 141.8 x 127.6 x 30 mm (5.6 x 5 x 1.2 in.)
Weight
- 520 g (1.1 lb.)
Enclosure material
- Polycarbonate
Hardware
Processor
- Quad-core ARM Cortex-A53 at 1.5 GHz
System memory
- 3 GB DDR4
On-board storage
- 16 GB eMMC
Management interface
- Ethernet
- Bluetooth
Networking interface
- LAN:
- (4) GbE RJ45 ports
- WAN:
- (1) 1/2.5 GbE RJ45 port
IDS/IPS throughput
- 1 Gbps
Power method
- USB type C (5V DC/3A)
Supported voltage range
- 100–240V AC
Max. power consumption
- 6.2W
LCM display
- 0.96-in status display
Button
- Factory reset
Operating temperature
- -10°C to 40°C (14°F to 104°F)
Operating humidity
- 5% to 95% noncondensing
Certifications
- CE, FCC, IC
Gateway Features
Performance
- Redundant WAN with failover and load balancing
- WiFi QoS with UniFi APs
- Application, domain, and country-based QoS
- Application and device type identification
- Additional internet failover with LTE Backup
- Internet quality and outage reporting
Next-generation security
- Application-aware firewall rules
- Signature-based IPS/IDS threat detection
- Content, country, domain, and ad filtering
- VLAN/subnet-based traffic segmentation
- Full stateful firewall
Advanced networking
- Licence-free SD-WAN
- WireGuard, L2TP and OpenVPN server
- OpenVPN client
- OpenVPN and IPsec site-to-site VPN
- One-click Teleport and Identity VPN
- Policy-based WAN and VPN routing
- DHCP relay
- Customizable DHCP server
- IGMP proxy
- IPv6 ISP support
LEDs
Ethernet
- Green: link/activity
Application Requirements
Mobile app
- UniFi iOS: Version 10.12.0 and later
- UniFi Android: Version 10.11.2 and later
Standard Warranty: 1-Years
| Weight | 0.25 kg |
|---|---|
| Dimensions | 14.18 × 12.76 × 3 cm |
Only logged in customers who have purchased this product may leave a review.
Related Products

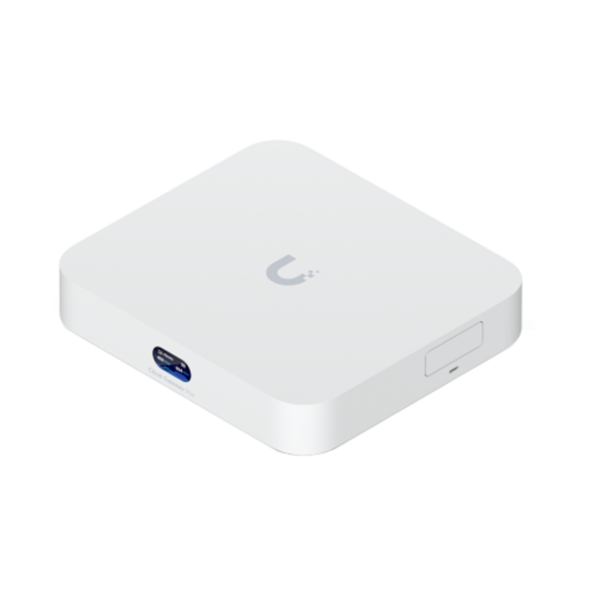

Ubiquiti UniFi UCG-Max Cloud Gateway Max Broadband Router is designed for efficiency and high performance in a compact form factor. It supports over 30 UniFi devices and can handle up to 300 clients, making it an excellent choice for medium to large networks.
