Ubiquiti UDM-SE UniFi Dream Machine SE Enterprise Appliance
Ubiquiti UDM-SE UniFi Dream Machine Special Edition Enterprise Network Appliance is an enterprise-grade UniFi OS Console capable of helping home and business owners alike seamlessly scale and manage their networks with high-speed, dual-WAN connectivity (10G SFP+ and 2.5GbE RJ45), whilst also incorporating a Gigabit PoE switch, and a network video recorder (NVR) with 128 GB of internal storage.
£483.42 inc.VAT / £402.85 exc.VAT
Ubiquiti UDM-SE UniFi Dream Machine Special Edition Enterprise Network Appliance
Ubiquiti UDM-SE UniFi Dream Machine SE Enterprise Appliance
The Ubiquiti UDM-SE UniFi Dream Machine Special Edition Enterprise Network Appliance is an enterprise-grade UniFi OS Console capable of helping home and business owners alike seamlessly scale and manage their networks with high-speed, dual-WAN connectivity (10G SFP+ and 2.5GbE RJ45), whilst also incorporating a Gigabit PoE switch, and a network video recorder (NVR) with 128 GB of internal storage. Powered by UniFi OS, the UDM SE gives you full control of all your UniFi devices, including access points, UniFi Protect cameras, UniFi Talk phones, and UniFi Access readers (all sold separately). It’s also a future-proof console since it will be able to run all upcoming UniFi OS applications. Engineered for end-to-end simplicity, the UDM SE features an integrated Bluetooth radio that streamlines the initial setup and configuration processes — all of which can be completed in minutes via the UniFi OS web portal or UniFi Network mobile app.
Key Features
- 1.7 GHz, quad-core processor.
- Dual WAN ports (10G SFP+ and 2.5GbE RJ45).
- Six (6) 1GbE 802.3af (PoE) and two (2) PoE+ IEEE 802.3at (PoE+) LAN ports.
- One (1) 10GbE SFP+ LAN port.
- 1.3-inch LCM colour touchscreen for at-a-glance network monitoring.
- Customizable internet threat filtration and traffic identification for enhanced network security.
- Quick, Bluetooth-powered setup via the UniFi Network web application or mobile app.
- 1U-sized, rack-mountable device.
- Compatible with the SmartPower Redundant Power Supply system (sold separately).
- Integrated security gateway and UniFi Protect-ready NVR that supports compatible 3.5″ HDDs (drives sold separately).
- 128 GB integrated storage for full UniFi OS Application experience.
Specifications
Mechanical
Dimensions
- 442.4 x 43.7 x 285.6 mm (17.42 x 1.72 x 11.24 in.)
Weight
- 4.95 kg (10.91 lb.)
Enclosure materials
- Aluminium CNC, SGCC steel
Mount material
- SGCC steel rack mount
Hardware
Processor
- Quad-Core ARM Cortex-A57 at 1.7 GHz
System memory
- 4 GB DDR4
On-board storage
- 16 GB eMMC
- Integrated 128 GB SSD
IDS/IPS throughput
- 3.5 Gbps (measured with iPerf3)
Max. power consumption
- 50W
Power method
- 1 x Universal AC input, 100-240VAC, 4.4A Max, 50/60 Hz
- 1 x USP-RPS DC input, 52VDC, 3.46A
Power supply
- AC/DC, Internal, 240W
Supported voltage range
- 100 to 240VAC
Management interfaces
- Ethernet
- Bluetooth
Networking interfaces
- 1 x WAN: 2.5 GbE RJ45 ethernet
- 8 x LAN: 1 GbE RJ45 ethernet
SFP+ interfaces
- 1 x WAN: 10G SFP+
- 1 x LAN: 10G SFP+
PoE interfaces
- 2 x PoE+ IEEE 802.3at (pair A 1, 2+; 3, 6-)
- 6 x PoE IEEE 802.3af (pair A 1, 2+; 3, 6-)
Total available PoE
- 130W
Max. PoE wattage per port by PSE
- 15.4W
Voltage range 802.3af mode
- 44 to 57V
ESD/EMP protection
- Air: ± 15 kV, contact: ± 8 kV
LCM display
- 1 x 1.3″ touchscreen
- Bootup animation: bootup in progress
- Firmware upgrade Icon: firmware upgrading
Button
- Factory reset
Operating temperature
- -10°C to 40°C (14°F to 104°F)
Operating humidity
- 5% – 95% noncondensing
Certifications
- CE, FCC, IC
LEDs
Ethernet
- White: link/activity
SFP+
- White: link/activity
HDD
- White: disk activity, amber: disk error
RPS
- Blue: ready
Standard Warranty: 1-Years
| Weight | 4.95 kg |
|---|---|
| Dimensions | 44.24 × 4.37 × 28.56 cm |
Only logged in customers who have purchased this product may leave a review.
Related Products

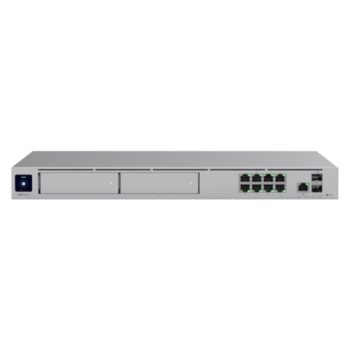

Ubiquiti UDM-Pro UniFi Dream Machine Pro Enterprise Network Appliance is an all-in-one network appliance for a scalable network in an office, retail, or hospitality environment.
