Ubiquiti U6-Pro UniFi AX5400 WiFi 6 Access Point (AX)
The Ubiquiti U6-Pro UniFi WiFi 6 Access Point is an indoor WiFi 6 AP with 5.3Gbps over the air speed and a 300+ client capacity. Ubiquiti U6-Pro UniFi AX5400 WiFi 6 Access Point (AX) WiFi 6 dual radio, 6 spatial streams, Premium WiFi speed, (1) 1GbE port and PoE+ powered.
Please note: This device does not come with a PoE injector – sold separately.
£157.44 inc.VAT / £131.20 exc.VAT
Ubiquiti U6-Pro UniFi WiFi 6 Access Point (5.3Gbps AX)
Ubiquiti U6-Pro UniFi AX5400 WiFi 6 Access Point (AX)
The Ubiquiti U6-Pro UniFi WiFi 6 Access Point also marries power with ease of use through streamlined setup, configuration, and mobile-friendly management via the UniFi Network app.
Key Features
- Dual-band WiFi 6 (802.11ax) capability.
- Up to 4.8 Gbps over the air speed via the 4×4 5GHz channel.
- Up to 573.5 Mbps over the air speed via the 2×2 2.4GHz channel.
- 300+ concurrent client support.
- Guest Traffic Isolation, which enhances wireless network security and lowers traffic congestion.
- Universal mounting plate, backing plate, and screw kit included.
- Managed with UniFi Network Application Version: 6.1.56 or higher.
Specifications
Mechanical
Dimensions
- Ø 197 x 35 mm (Ø 7.76 x 1.38 in.)
Weight
- Without Mount: 460 g (1.01 lb.)
- With Mount: 600 g (1.32 lb.)
Enclosure Material
- Plastic
Mount Material
- SGCC Steel
Weatherproofing
- IP54
Hardware
Processor Specs
- Dual-Core Cortex A53 at 1 GHz
Memory Information
- 512 MB
Management Interface
- Ethernet
Networking Interface
- 1 x 1 Gbps Ethernet RJ45
Button
- Factory Reset
LED
- RGB
Power Method
- PoE+, Passive PoE (48V)
Power Supply
- UniFi PoE Switch (sold separately)
- 48V, 0.5A PoE Adapter (sold separately)
Supported Voltage Range
- 44 to 57VDC
Max. Power Consumption
- 13W
Max. TX Power
- 2.4 GHz: 22 dBm
- 5 GHz: 26 dBm
MIMO
- 2.4 GHz: 2 x 2
- 5 GHz: 4 x 4
Throughput Speeds
- 2.4 GHz: 573.5 Mbps
- 5 GHz: 4.8 Gbps
Antenna Gains
- 2.4 GHz: 4 dBi
- 5 GHz: 6 dBi
Mounting
- Wall/Ceiling (Kits Included)
Operating Temperature
- -10ºC to 50ºC (14ºF to 122ºF)
Operating Humidity
- 5% – 95% Noncondensing
Certifications
- CE, FCC, IC
Software
WiFi Standards
- 802.11a/b/g
- WiFi 4/WiFi 5/WiFi 6
Wireless Security
- WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
- Note:Â WPA3 supported With Upcoming Controller Versions
BSSID
- 8 per Radio
VLAN
- 802.1Q
Advanced QoS
- Per-User Rate Limiting
Guest Traffic Isolation
- Supported
Concurrent Clients
- 300+
Zero Wait DFS
- Yes
- Note:Â Supported With Upcoming Firmware Versions
Supported Data Rates (Mbps)
802.11a
- 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b
- 1, 2, 5.5, 11 Mbps
802.11g
- 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n (WiFi 4)
- 6.5 Mbps to 400 Mbps (MCS0 – MCS31, HT 20/40)
802.11ac (WiFi 5)
- 6.5 Mbps to 3.4 Gbps (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80/160)
802.11ax (WiFi 6)
- 7.3 Mbps to 4.8 Gbps (MCS0 – MCS11 NSS1/2/3/4, HE 20/40/80/160)
Standard Warranty: 1-Years
| Weight | 0.6 kg |
|---|---|
| Dimensions | 19.7 × 3.5 cm |
Only logged in customers who have purchased this product may leave a review.
Related Products
Ubiquiti UAP-AC-PRO UniFi AC1750 simultaneous dual-band WiFi PoE access point offers simultaneous, dual-band operation with 3×3 MIMO in the 2.4 GHz band and 3×3 MIMO in the 5 GHz band.
6 in stock
Ubiquiti U6-Lite WiFi 6 Access Point delivers up to 1.5 Gbps aggregate radio rate with 5 GHz (MU-MIMO and OFDMA) and 2.4 GHz (MIMO) radios.
IMPORTANT:Â The Ubiquiti U6-Lite UniFi access point is not supplied with a PSU or PoE injector. Powering options must be purchased separately.
Out of stock
Ubiquiti U6-LR UniFi Long Range WiFi 6 PoE+ Access Point is a high-performance access point leveraging advanced WiFi 6 technology to provide powerful wireless coverage to enterprise environments.
Please note:Â Does not include PoE injector. This product has specific requirements if installed outdoors
152 in stock
Ubiquiti U7-Pro-Max UniFi Tri-Band WiFi 7 Access Point is a ceiling-mounted AP with eight (8) spatial streams, 6 GHz support, and a dedicated spectral scanning engine for interference-free WiFi in demanding, large-scale environments.
Please note:Â This Ubiquiti U7-Pro-Max is not supplied with a PoE injector. This product is not yet officially WiFi 7 certified and may not support all the mandatory features as ratified in the IEEE 802.11be specification.
59 in stock
Ubiquiti U7-Lite UniFi WiFi 7 Access Point is a compact, ceiling-mounted WiFi 7 AP with four (4) spatial streams and one (1) 2.5 GbE uplink. Designed for high-performance networking
780 in stock

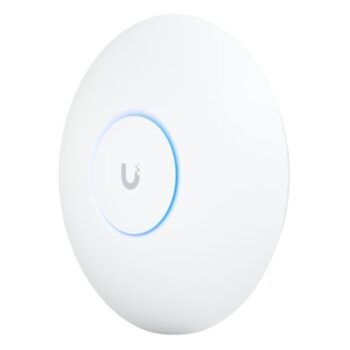

Ubiquiti U7-Pro UniFi Tri-Band Ceiling Mount WiFi 7 Access Point is a ceiling-mounted WiFi 7 Access Point with 6 GHz support, 2.5 GbE uplink, and 9.3 Gbps over-the-air speed.
