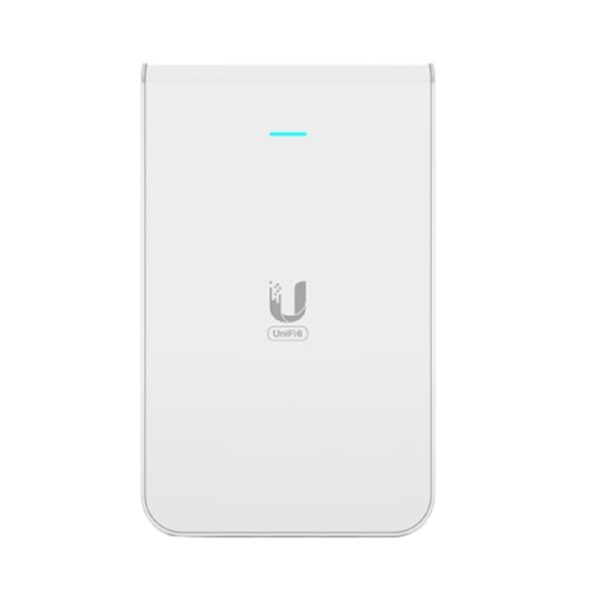

Ubiquiti U6-IW UniFi In-Wall PoE WiFi 6 Access Point (AX)
Ubiquiti U6-IW UniFi In-Wall WiFi 6 PoE Access Point is a dual-band, wall-mounted access point, with four (4) GbE RJ45 ports, that brings plug-and-play WiFi 6 to your home or office.
Note:Â PoE+ input required for U6-IW to support PoE-outÂ
£188.95 inc.VAT / £157.46 exc.VAT
Ubiquiti U6-IW UniFi In-Wall WiFi 6 PoE Access Point (5.3Gbps AX)
Ubiquiti U6-IW UniFi In-Wall PoE WiFi 6 Access Point (AX)
The Ubiquiti U6-IW UniFi In-Wall PoE WiFi 6 Access Point (AX) is a dual-band, wall-mounted access point, with four (4) GbE RJ45 ports, that brings plug-and-play WiFi 6 to your home or office. One of the U6-IW’s ports also supports PoE output (PoE+ power input required) so you can connect and power a device via Ethernet. With its 2.4 and 5 GHz WiFi 6 bands, the U6-IW offers an aggregate, over-the-air throughput rate of 5.3 Gbps, which can support over 300 clients. The U6-IW is also Bluetooth-compatible so it can be set up in minutes and managed from anywhere via the UniFi Network web application or mobile app.
Key Features
- High-efficiency, four-stream WiFi 6 technology.
- 5 GHz WiFi 6 band (4×4 MU-MIMO and OFDMA).
- 2.4 GHz WiFi 6 band (2×2 MU-MIMO).
- Four (4) GbE RJ45 ports, including one that supports PoE output (requires PoE injector).
- 300+ client capacity.
- Simple, Bluetooth-powered setup via the UniFi Network web application or mobile app.
Specifications
Mechanical
Dimensions
- 139.66 x 96 x 31.19 mm (5.5 x 3.78 x 1.28 in.)
Weight
- 460 g (1.01 lb.)
Enclosure materials
- Plastic, aluminium
Mount material
- Aluminium
Hardware
Processor specs
- Dual-Core Cortex A53 at 1 GHz
Memory information
- 1 GB
Management interfaces
- Ethernet
- Bluetooth
Networking interfaces
- (1) Data-in: 1GbE RJ45 port
- (4) Data-out: 1GbE RJ45 ports
PoE interfaces
- (1) PoE in (PoE output not used)
- (1) PoE out (requires a PoE+ switch)
Button
- Factory reset
LED
- White/blue
- Note:Â Due to chip supply shortages, the U6 AP’s LED has been limited to only white and blue colour modes.
Power method
- PoE
Power supply
- UniFi PoE switch
- 48V, 0.5A PoE adapter (optional)
Max. power consumption
- Excluding PoE output: 13.5W
Max PoE wattage per port by PSE
- 15.4W
- Note:Â Requires a PoE+ switch
Voltage range PoE mode
- 44 to 57VDC
Max. TX power
- 2.4 GHz
- 22 dBm
- 5 GHz
- 26 dBm
MIMO
- 2.4 GHz
- 2 x 2 (UL MU-MIMO)
- 5 GHz
- 4 x 4 (DL/UL MU-MIMO)
Throughput rate
- 2.4 GHz
- 573.5 Mbps
- 5 GHz
- 4.8 Gbps
Antenna gain
- 2.4 GHz
- 5 dBi
- 5 GHz
- 5.9 dBi
Operating temperature
- -30°C to 60°C (-22°F to 140°F)
Operating humidity
- 5% – 95% noncondensing
Certifications
- CE, FCC, IC
Software
WiFi standards
- 802.11a/b/g
- WiFi 4/WiFi 5/WiFi 6
Wireless security
- WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
BSSID
- 8 per radio
VLAN
- 802.1Q
Advanced QoS
- Per-user rate limiting
Guest traffic isolation
- Supported
Concurrent clients
- 300+
Zero-wait DFS
- Yes
Supported Data Rates
802.11a
- 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b
- 1, 2, 5.5, 11 Mbps
802.11g
- 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n (WiFi 4)
- 6.5 Mbps to 600 Mbps (MCS0 – MCS31, HT 20/40)
802.11ac (WiFi 5)
- 6.5 Mbps to 3.4 Gbps (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80/160)
802.11ax (WiFi 6)
- 7.3 Mbps to 4.8 Gbps (MCS0 – MCS11 NSS1/2/3/4, HE 20/40/80/160)
Standard Warranty: 1-Years
| Weight | 0.46 kg |
|---|---|
| Dimensions | 13.96 × 9.6 × 3.11 cm |
